Troubleshooting Core Machine Air Leak Problems
Air leaks in core machines are one of those problems that start off small but can snowball fast. A slight hiss or drop in pressure might not grab attention right away, but over time it chips away at performance, wastes energy, and throws off cycle consistency. If left unchecked, these leaks don’t just slow down the process—they stress the equipment and cut into production timelines.

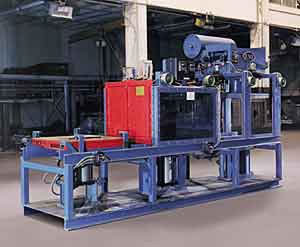

Catching and fixing air leaks early keeps your equipment running right and your crew from scrambling at the worst possible time. Whether you run high-production core machines, manual units for prototypes, or a vertically parted QuickCore setup, knowing where to look and what to replace makes a big difference. This breakdown covers what usually causes air leaks, how to spot the warning signs, and what to do next to keep your system airtight and reliable.
Common Causes Of Air Leaks In Core Machines
Most air leaks fall into a handful of categories, and while they might look different machine to machine, the root causes tend to come down to three things—age, wear, or improper sealing. With different core machine setups using everything from dual station boxes to compact prototype frames, weak spots show up in a few places more than others.
Keep an eye on these common troublemakers:
– Worn or damaged seals and gaskets: These break down over time from temperature swings, pressure cycling, or sand abrasion. If you spot grease buildup, cracking, or missing pieces, that’s your sign to swap them out.
– Loose or improperly tightened fittings: Connections at manifolds, pilot valves, or directional valves can shift due to constant vibration or improper torque during maintenance. Anything that can wiggle loses its seal eventually.
– Cracked or corroded hoses and pipes: Older air lines may dry out or crack, especially if they’re close to heat sources or exposed to moisture. A section of hose rubbing on frame steel can wear thin and leak without much warning.
– Faulty valves and regulators: Sometimes valves fail internally or stick from residue buildup. Regulator diaphragms can also stiffen with age, causing erratic pressure delivery and minor leaks that are hard to trace visually
If your core making process relies on consistent blow pressure, like on cold box designs or vertically-horizontal parted systems, even a small leak can prevent cores from forming cleanly or cause variation between cycles. This doesn’t just affect casting precision—it leads to more time spent resetting, purging, or hand-scraping cores, which chips away at production targets.
The good news is, with a plan in place and clear documentation of high-wear components, most of these leaks are preventable. They show up on a timeline, not by surprise. And learning where they’re most likely to start means you can check them off before they blow up your shift.
Identifying Symptoms Of Air Leaks
Some air leaks are loud and obvious, but many stay hidden until the machine starts acting strange. Operators often feel the issues first—longer fill times, poor core quality, or irregular clamp force. If your cycle timing feels off or your controls seem to be working harder than they should, there’s a good chance air is escaping somewhere.
Here’s what to look and listen for:
– Hissing or whistling noises that don’t stop between cycles
– A drop in pressure readings or swings during high-demand stages
– Softer-than-normal clamp engagement or irregular core seating
– Missed core fills or incomplete cures on cold box setups
You might notice slower core blow or lifting motions on horizontal machines or pumps working harder to maintain pressure. In a dual station unit, if one box works normally and the other’s behavior changes, that should be a red flag. It can be tempting to adjust your timers or blame the sand mixture, but if the issue showed up suddenly and affects blow or strip consistency, start looking at your air circuit.
It helps to check for signs like extra residue at fittings, uneven gasket compression marks, or buildup around needle valves and quick connects. Any of those clues can point you straight to a leak you didn’t hear. Keep in mind, it’s common for air leaks to show up after a maintenance cycle if fittings aren’t properly retorqued or parts aren’t sealed cleanly.
Identifying the first signs of a leak doesn’t just help fix the immediate problem—it also gives you a heads-up on which components are reaching their wear limits so you can include them in your next scheduled maintenance.
Steps To Diagnose And Fix Air Leaks
Finding the cause of an air leak often takes a steady hand and a little patience. The process gets easier when you stick to a routine sequence and know which systems fail more often than others in your setup. Whether the machine is a dual station cold box press or a manually operated prototype unit, a step-by-step approach helps contain the problem before it spreads across other parts of the equipment.
Here’s a reliable way to tackle the problem:
- Conduct a visual inspection. Look over hoses, lines, regulators, and joints. Focus on areas near pivoting parts or vibrating supports where movement may stress the materials.
- Use soapy water on suspected spots. Spray the solution on fittings, seals, and connections. A bubbling response usually means a leak.
- Tighten connections. Go over all quick connects, threaded ports, and seals. Loose parts are especially common after a recent maintenance cycle or parts replacement.
- Replace worn parts. If the leak comes from cracked hoses or flattened gaskets, don’t patch the issue. Install new components that match the machine spec.
- Retest the system. Once everything’s sealed again, restart the machine and test each function to confirm pressure readings and timing are back within range.
Keep in mind that some parts, like solenoid valves or regulator diaphragms, can fail without clear visual signs. If a section keeps leaking after you’ve replaced all obvious components, it may be time to isolate the circuit and pressure test each valve individually. On high-production or 3-in-1 core machines where uptime matters, it’s better to replace questionable parts during downtime than hope they’ll last another cycle.
One operator shared how a hidden leak behind a directional control valve on a vertical core machine cost him two full shifts before it was found. A hose had pinched behind the frame bracket, allowing just enough air to escape to cause low blow pressure. A ten-minute hose replacement fixed it, but only after hours of chasing false leads elsewhere.
Leaks don’t usually announce themselves right away, so when the machine behaves erratically, follow the airflow step by step until the pressure holds and the system runs clean.
Preventive Measures To Avoid Future Air Leaks
Even if leaks get resolved quickly, they still disrupt production and can add wear to your core machines. That’s why building preventive habits into operations is one of the smartest ways to keep issues from repeating. Small changes in how machines are maintained and operated go a long way.
Here are practices that help reduce the chance of future air leaks:
– Stick to a maintenance schedule. Include routine checks for valves, lines, and gaskets on cold-box and manual systems. Don’t skip leak-down tests during non-production days.
– Train teams on proper machine handling. Rough impacts, over-tightening fittings, or forcing hardware into place often cause hairline damage that worsens over time.
– Store spares correctly. Gaskets and seals stored near chemicals or heat can degrade before even getting installed. Keep backup parts in clean, sealed conditions.
– Upgrade worn-out components. Swapping parts with longer-lasting material blends helps machines like the QuickCore or high-throughput dual station systems stand up to hourly abuse.
– Keep machines clean. Dust, resin, and oil residue along the machine’s base or control panel may seem harmless but can compromise seals and fittings after repeated buildup.
In plants with multiple core machines running together, one leak often leads to system-wide air drops. That forces every machine to work harder just to keep pace. Installing a pressure monitor on each unit and comparing blow pressure readings over time helps reveal early warning flags. Don’t wait to replace a seal after it fails—track when it should fail and plan around it.
Keep Air Leaks From Controlling Your Shift
Once an air leak is found and fixed, the job isn’t over. Long-term reliability takes more than just reacting to problems. It means building in steps that keep the machines cleaner, safer, and more consistent over time so your team doesn’t keep looping back to the same issues.
Make note of every leak incident. Where it happened, what part failed, how long it took to fix. That information feeds into smarter PM plans and part stocking. If a regulator has failed twice in less than a year, it might be better to switch brands or design upgrades on that section.
Running regular airflow checks, especially after major sand changes or mold cycle updates, helps you spot drift before pressure dips start throwing off cores. And don’t overlook operators’ gut instincts. They usually notice air behavior changes before the metrics catch it. Trust those calls and loop in techs early when something feels off.
Air leaks will always try to creep back in, especially on complex machines like vertical core formers or automatic molding setups. But with good tracking, timely part swaps, and solid maintenance habits, you can stay ahead of the curve and keep production running leaner, longer.
