Tackling Air Pressure Problems In Core Machines
Air pressure issues in core machines can sneak up on even the most experienced foundry teams. When airflow suddenly becomes unstable or inconsistent, it does more than impact the machine’s performance. It can slow productivity, waste materials, and cause costly periods of downtime. Even small deviations in air supply can disrupt a core-making process, especially when using high-production systems like Cold Box machines.
Whether you’re using a Prototype model or a fast-paced setup like Dual Station Cold Box Core Machines, keeping air pressure consistent is key to smooth operations. Problems may start small—like soft or incomplete cores or residue building up in places it shouldn’t—but if unattended, they can quickly grow into production delays. Understanding how air impacts your machines and spotting small shifts early helps keep everything running without interruption.
Understanding Air Pressure In Core Machines
Air pressure plays a part in nearly every stage of the core-making process. It moves sand where it needs to go, fills the core box evenly, cures resin properly, and clears extra material after the core is formed. If the pressure changes suddenly from what it was at the start of the cycle, timing and part quality can suffer. This matters even more in machines like the QuickCore or 3-IN-1, where timing and control are critical for repeatable results.
Common symptoms tied to air pressure issues include:
– Softer cores that break or crumble with light handling
– Unfilled or partially filled cores—especially in long, narrow cavities
– Longer than usual cycle times
– Build-up of material on blowplates and vents
– Hissing sounds, weakness during the blow step, or slow system startup
If you’re running a Dual Station setup and notice that every few cycles produce incomplete cores, airflow is likely the issue. If your materials and core box haven’t changed, the problem usually lies in air delivery. It could be reduced pressure, leaks, or inconsistent flow due to buildup or mechanical wear.
Cold Box systems are especially reliant on steady airflow. From Manual Core Equipment to automatic horizontal or vertical core box setups, each depends on clean and accurate air application. Pressure variation turns a controlled process into one with more guesswork and unexpected repairs.
Identifying The Causes Of Air Pressure Problems
Once signs of air pressure trouble appear, finding their source becomes the biggest priority. Not all problems start inside the core machine. Issues in the surrounding air systems, pipes, regulators, or gaskets could be to blame. Knowing where to look first helps shorten repair time and reduce lost productivity.
Here are the most common causes of air pressure problems in core machines:
1. Clogged Air Lines
Over time, resin, sand, and dust can collect inside air lines. Even slight obstructions affect the amount of pressure delivered. Clogs may not fully block air, but they create turbulence and uneven pressure.
2. Worn-Out Seals and Gaskets
Seals harden or crack over time, especially in systems exposed to pressure, heat, or chemicals. That damage allows air to leak before it hits the intended parts in the cycle. These leaks often go unnoticed until they affect cycle timing or performance.
3. Faulty Pressure Regulators
If a regulator stops holding a set output or drifts during use, airflow will vary cycle to cycle. You might notice fill inconsistencies or changes in core firmness. A consistent blow fill operation depends heavily on an accurate pressure setting.
Sometimes, these problems happen together. For example, a small leak in a gasket might decrease pressure slightly, but buildup in the regulator can magnify the effect. Pinpointing problem areas early minimizes the risk of extended delays.
Solutions For Tackling Air Pressure Problems
Once you’ve found the cause, the next step is fixing it. While some solutions can be handled in-house with the right training, there’s value in leaning on experienced support when things get more technical. This is especially true when troubleshooting in complex systems like 3-IN-1 or Dual Station Core Machines.
Start with these key solutions:
– Inspect and clean air lines
Check for buildup in the pipes or bends where resin and sand might settle. Flushing air lines regularly using dry compressed air helps avoid clog-related issues.
– Replace worn seals and gaskets
Inspect areas around valves, regulators, and air injection ports. If seals are dry, brittle, or cracked, swap them out immediately. Small leaks can snowball into larger mechanical problems.
– Calibrate pressure regulators as needed
Using a calibrated pressure gauge, confirm the air pressure matches what the machine and tooling require—under actual load. Manual and Prototype machines may tolerate more range. High-output setups like 3-IN-1 demand tighter control.
– Monitor machine cycles after each repair
Watch how the machine behaves once maintenance is complete. If the repair worked, you should notice more consistent timing, fuller core fills, and better material cleanup after cycles. If one area improves while another lags, it might point to multiple issues in the system.

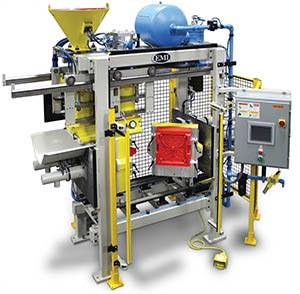

By staying consistent with these repairs, most pressure-related issues can be limited before they affect full production shifts. Equipment like QuickCore especially benefits from tight control of air pressure during both the fill and cure stages.
Preventive Maintenance Tips For Reliable Performance
Fixing problems as they show up helps, but long-term performance depends on catching signs early—or preventing them altogether. No matter how advanced your equipment is, keeping air systems tuned only works when you make it part of your regular schedule.
Use these practices regularly to lower the chance of unplanned downtime:
1. Stick to an inspection schedule
Breakdowns are often the result of skipped checks. Make it a habit to inspect hoses, valves, regulators, and other air-related parts. In Cold Box systems, pay special attention to areas leading to the blow head.
2. Track your maintenance
Maintaining a written or digital log goes a long way. Note when filters are changed, valves are checked, or seals are replaced. That log becomes an asset, especially for shops running around the clock or managing multiple machines.
3. Train your operators on warning signs
Operators know your machines better than anyone. Teach them to recognize odd sounds, slow resets, or soft cores. Giving them permission to report and flag issues early can prevent extended repairs or missed deliveries.
These steps don’t require major overhauls or endless hours, but they do help keep machines running at their best. Building a pattern of regular care also helps you spot trends. If the same part keeps acting up, it may be time to consider a bigger solution rather than frequent patchwork.
What Reliable Air Pressure Means For Your Machines
It’s easy to overlook the role air plays until something breaks. At that point, the blame might fall on tools or sand mix, when in fact unstable air pressure is the real problem. Staying alert to changes in airflow makes it easier to keep everything on track.
Monitor pressure consistency across all your machines—from Manual units to QuickCore and Dual Station systems. Whether it’s a sudden blow failure or gradually softening cores, pressure loss often shows up before the real damage is done. A leak here or faulty regulator there can slow a system that otherwise performs well.
By adding good habits to your daily and weekly schedules, your maintenance team can keep systems dependable. Fewer disruptions, cleaner cycles, and consistent core quality all come standard when pressure stays stable.
Keep focusing on regular upkeep, train your team to catch issues early, and review pressure settings often. With these actions, your core machines stand a better chance at long service life and strong performance every cycle.
Maintaining efficient operations and avoiding downtime in your foundry starts with addressing air pressure issues in your equipment. By sticking to a regular maintenance routine and training your team to spot potential problems early, you ensure your core machines stay productive. For more insights and reliable strategies on enhancing your processes, explore the full range of solutions from EMI.
