Core Machines: Ensuring Proper Sand Mixing Ratios
Getting the sand mixture right in core machines isn’t just a minor detail. It’s one of those behind-the-scenes steps that makes a big difference on the floor. The sand ratio impacts how your cores hold shape, cure, and interact with heat, not to mention how often problems show up later in the process. When the mix is off, everything down the line pays for it.
Whether you’re running a high-production setup or working with a manual machine, dialing in that sand blend helps keep things running smoother. You’ll see cleaner cores, stronger structure, and fewer issues mid-cycle. The goal is consistency, and the right ratio is where it starts. But what’s actually in that mix? And how do you keep it balanced when production never lets up?
The Science Behind Sand Mixing
To understand how sand mixing ratios affect your core machine, it’s worth breaking down what goes into the mix. It’s more than just sand. A typical core sand blend includes several components, each with a job to do:
– Base sand: This makes up most of the mix. It provides structure.
– Binders: These hold the grains of sand together in shape after it’s blown into the core box.
– Additives: These help improve surface finish, reduce gas defects, or speed up curing.
When these ingredients are mixed in the right proportions, your equipment can produce strong, accurate, and dimensionally stable cores. But when even one element moves out of range, problems creep in. Binders that are too rich lead to sticky boxes. Low binder levels give you weak cores that crumble during handling. If the base sand has too much moisture or the wrong grain size, it throws everything off.
Getting scientific about the mix means understanding your sand’s shape and distribution. Rounded grains behave differently than angular ones. Fine particles increase surface area but could slow gas release. All of this impacts blow time, curing, and how easily the cured core strips from the box.
A simple example: say you’re running a dual station cold box system and using a mix that’s producing rough core surfaces. Turns out your binder level is slightly high, reacting too fast in contact with moisture and increasing surface crust. Adjusting it just a little not only improves your finish, but shortens cure time. Little tweaks like this can improve both efficiency and output.
Best Practices For Achieving Proper Sand Mixing Ratios

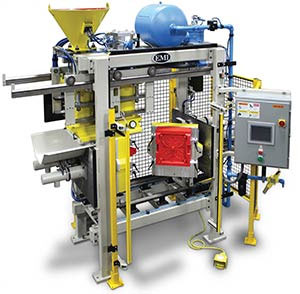

Getting your sand ratio right takes repeatable methods, dependable tools, and regular checks. You want every batch to perform like the last. Whether you’re running a QuickCore setup, a 3-IN-1 machine, or a vertically parted cold box unit, the principles stay the same.
Here are a few tried-and-true actions to help you keep the mix in check:
1. Weigh materials accurately: Use a digital scale for batch ingredients. Don’t eyeball it. Even small errors in binder amounts can cause inconsistencies.
2. Mix thoroughly: Incomplete mixing can leave streaks in the sand where the binder hasn’t coated evenly. That causes uneven curing and core strength issues.
3. Use automated mixers when possible: Automated systems give you consistent results. They also reduce the time spent checking every batch, not eliminating it, just cutting it down.
4. Keep materials dry and stored properly: Moisture in sand or binders throws off mix ratios and leads to steam-related defects or gassing problems.
5. Standardize your process: Don’t let shifts swap out methods. Stick with the same timing, same sequence, and same mix recipe to keep results uniform.
The end goal is to have a consistent, repeatable sand mix that flows properly into the box, cures evenly, and holds together without sticking or sagging. And the more consistent your sand mix, the easier it becomes to troubleshoot anything that falls out of spec.
Common Mistakes And How To Avoid Them
Even with the right equipment and a reliable workflow, mistakes in sand mixing still happen. And when they do, they tend to show up quickly as core defects, operational delays, or pattern issues. Knowing what to watch for can prevent those headaches before they start.
One of the most common errors is over-mixing or under-mixing the sand and binder. Over-mixed sand can break down the binder’s effectiveness. It creates a mixture that’s too dry, leading to poor curing and surface issues. Under-mixed sand, on the other hand, often comes out streaked and inconsistent. That inconsistency produces weak cores and uneven mold release.
Another problem area is measuring accuracy. Loosely filled scoops and guesswork get expensive fast. Binders and additives that are even slightly off-ratio can change blowing pressure or increase cycle times. Using the same measuring tools for different materials can also cross-contaminate the mix.
Environmental factors play a big role too. High humidity levels can start curing reactions before the sand even hits the box. Cold temperatures affect binder flow and cure rates. If you’re working with prototype machines or manual systems where controls are limited, it’s even more important to monitor how the workspace impacts your materials.
To reduce these issues:
– Calibrate scales and dispensing equipment regularly
– Pre-condition sand in a temperature-controlled environment
– Label and separate materials to avoid cross-contamination
– Monitor humidity and keep sand storage areas sealed
– Train operators to follow a consistent mixing sequence
When problems happen, the first place to check is always the mix. If your cores are warping, crumbling, or sticking, there’s a good chance the sand blend needs a second look.
Monitoring And Adjusting Sand Mixes
Maintaining a consistent sand mix doesn’t stop once batching is done. On-the-fly checks and adjustments keep things in shape for both short runs and full shifts. The goal is to spot changes early and make corrections without slowing down production.
Start with regular testing protocols. Even just hourly or shift-based sampling can catch issues before they get worse. You’ll want to check mix temperature, density, working time, and mold hardness. If your plant uses high-production or automatic molding lines, these checks can be built into the workflow without slowing anything down.
Older manual molding machines or prototype setups might need more hands-on checking. That’s fine too, as long as it’s consistent. Pre-cure strips or small board tests can quickly show if the binder level is off or if the sand conditioning needs tweaking.
Tools that can help with adjustments include:
– Sand flow testers to see if the mix will pack properly
– Laboratory mixers for small-batch experimentation
– Refractometers to evaluate binder content
– Moisture meters to track the impact of ambient conditions
Once you’ve dialed in a test process that fits your setup, stay with it. Any switch in batch size, binder type, or temperature should kick off a new round of test checks. Don’t assume one good batch means the next four will behave the same. Machines like 3-IN-1 core systems or QuickCore variants have different demands at each station, so matching the mix to the tool matters more than ever.
A good rule of thumb: if the final product doesn’t meet spec, work backward through the mixing and testing process instead of chasing machine errors. It saves time and avoids unnecessary breakdowns.
When It’s Time to Call for Backup
Even the best shop routines run into challenges that aren’t simple fixes. Maybe you’re scaling from a manual system to a dual station unit. Maybe the binder you’ve used for years is reacting differently with the latest sand. When repeat problems show up and internal changes don’t solve them, it’s usually time to involve outside help.
Working with specialists who know core machines and custom molding systems inside and out can uncover process improvements that aren’t easy to spot from the inside. Sometimes the issue isn’t even with the sand but with how your current equipment handles that mix. That’s something a fresh set of eyes can pin down quickly.
Whether you’re adjusting mix ratios, overhauling your mold strategy, or debugging a sticky core box, bringing in support can shorten downtime and improve batch reliability. It saves more than it costs when the solutions are targeted and permanent.
Getting the sand mix right will always be the foundation of consistent core quality. But staying right, no matter the workload, machine type, or seasonal swing, is where steady production really lives or dies. Don’t let inconsistent batches knock your system off track. There’s always a better way to mix if you know where to look.
Achieving the ideal sand mix means smoother operations and dependable production, laying a solid foundation for your entire process. If you’re looking to optimize your setup with reliable solutions, take a closer look at how our core machines support better performance and consistency across foundry applications. At EMI, we help you get more out of every cycle with solutions built for durability and efficiency.
